1: Main light bar + fall after peak stop

2: Main light bar + disappears after peak stop

3: Main light bar (no peak)

4: Main light bar + peak flow disappears to the right

5: Main light bar segment display ((2 lights)

6: The main light bar is displayed (1 light) - this is a new effect

7: Main light bar + peak back and forth marquee

8: The main light bar + peak light jumps two light positions to the right and then falls

With ultra-wide range of AGC mode and professional DB mode

Product Description:

The REV1.10 version changes the real-time mode to dB mode, adding a single-point effect

Specific operation: (When pressing the button, there will be a corresponding LED indicating the button time)

I. In normal mode:

1. Press the button for 1 second - mode switch (there will be a corresponding preview)

2. Press the button for 3 seconds - switch between real-time mode and AGC mode (there will be a corresponding preview)

3. Press the key for 5 seconds - enter the speed setting mode

4. Press the key for 10 seconds - restore factory settings

5. Double-click the button - adjust the brightness of the level light, low light - medium light - high light cycle

II. Speed setting mode: (in normal mode, press and hold for 5 seconds to enter, and when exiting, press and hold for 5 seconds to exit)

1. Press the key for 1 second - in

1. Main body ascending speed (15-level speed optional)

2. Main body descending speed (15-level speed optional)

3. Peak dwell time (15 levels of time optional)

4. Peak descent speed (15 levels of speed optional)

5. Zoom in or zoom out in dB mode (15 levels optional, 80%-120%)

6. Light bar brightness adjustment (15 levels of brightness optional)

function ring switch

2. Click the button - cycle to change the set parameters

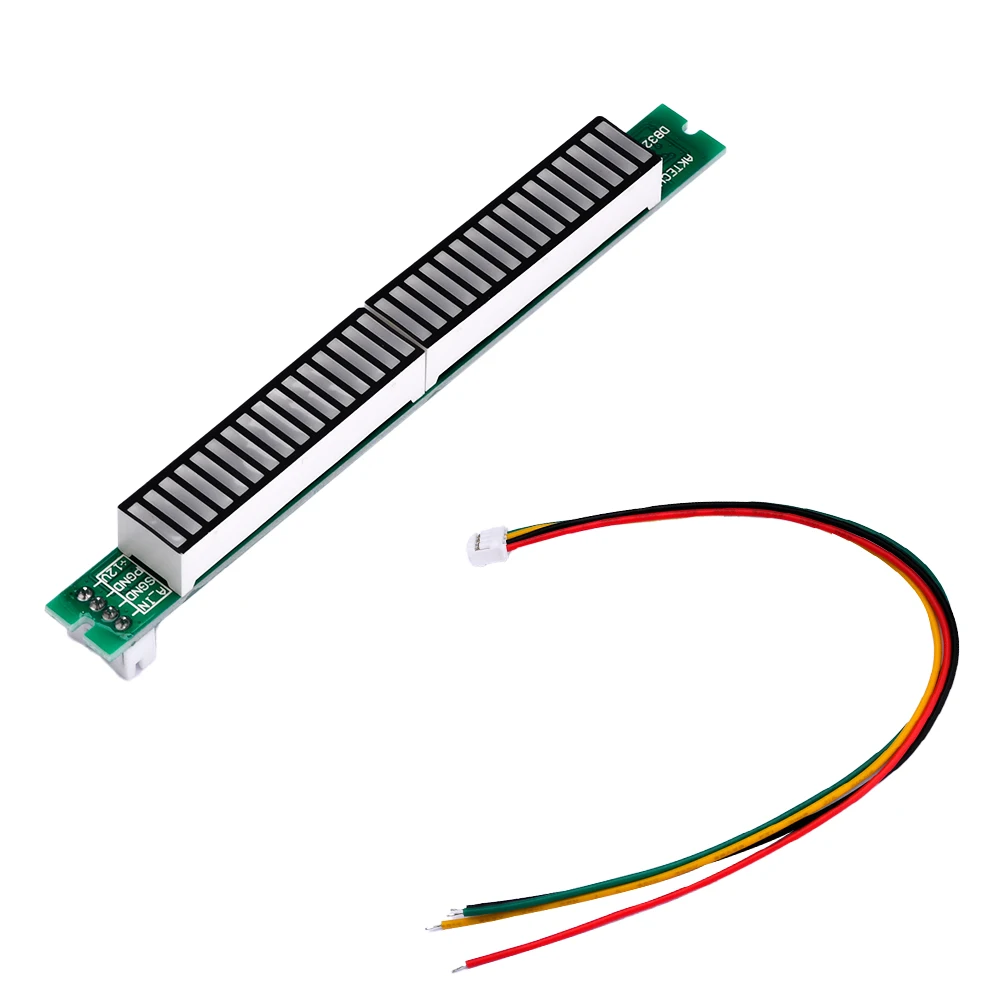

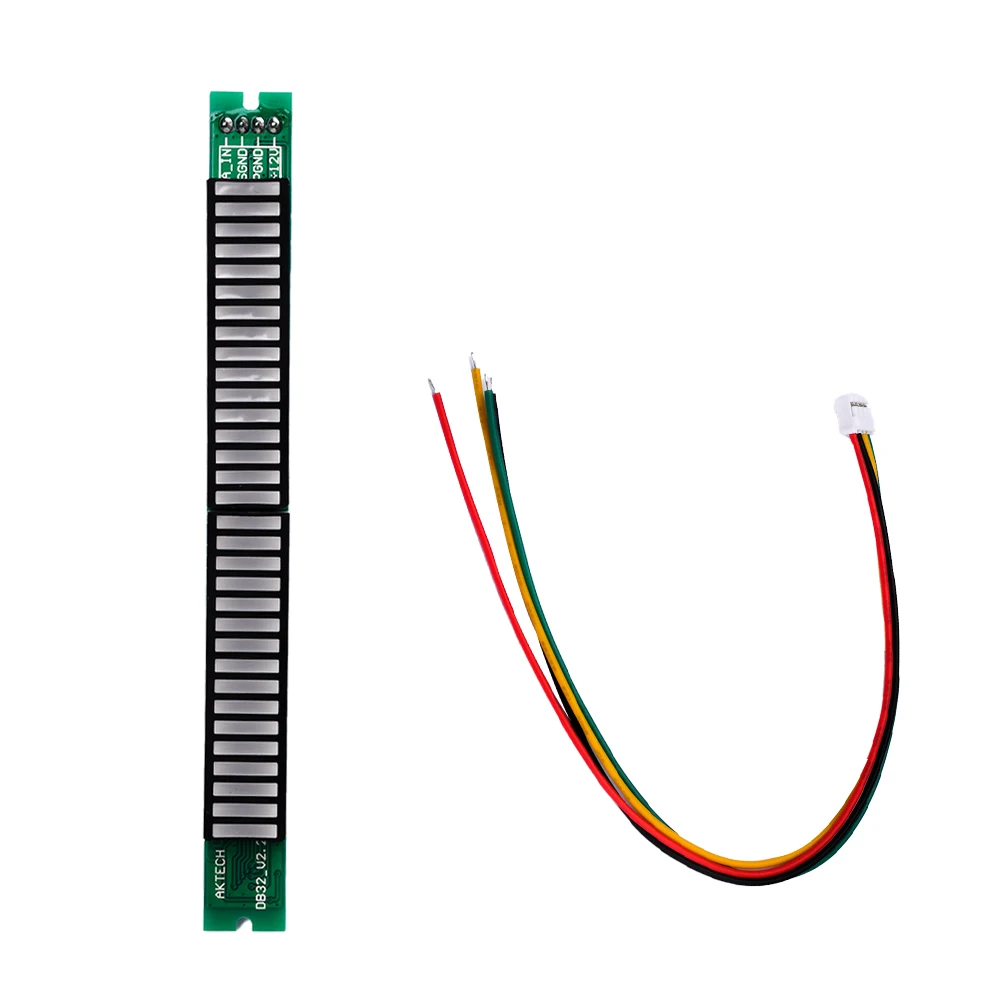

Package Contents:

Module X1

Cable X1

Only the above package content, other products are not included.

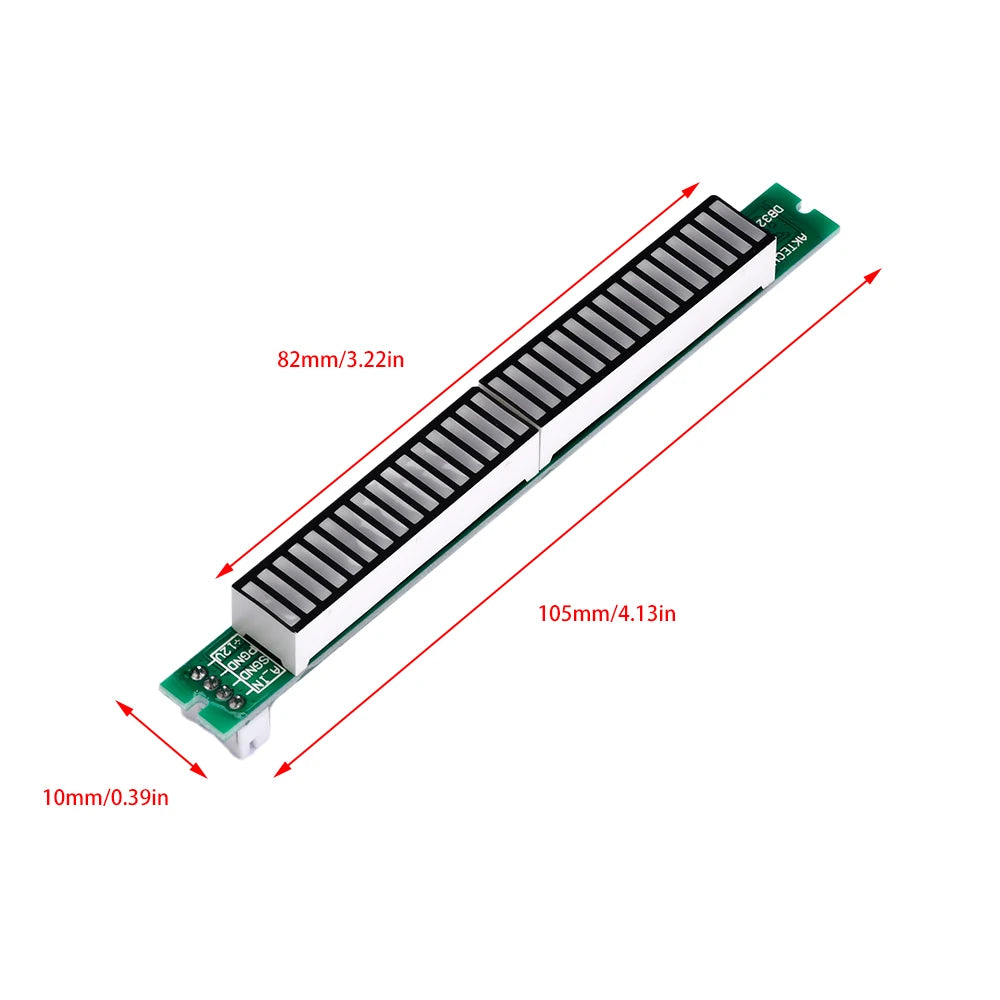

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
